- Place of Origin: China
- Brand Name: tengdong
- Model Number: 7132

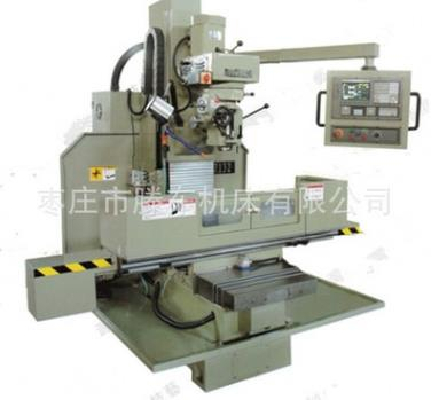

Lathe bed type CNC milling machine: XK7132
Structure is simple, economical and practical, stable and reliable;
Quantitative intermittent electric fuel supply system, cycle oil to all lubricating points, make the friction pair to form and maintain a moderate amount of lubricating oil film;
Countertops and guide super audio quenching;
All kinds of economic nc system is optional
- Place of Origin: China
- Brand Name: tengdong
- Model Number: 7132
Technical parameters | XK7132 |
Table size | 1500*320mm |
Max table load | 500kg |
Longitudinal travel | 900mm |
Horizontal stroke | 400mm |
Vertical travel | 500mm |
Spindle power | 5kw |
Spindle speed | 66-4540r/min |
spindle taper | NT40 |
Spindle nose to workbench | 100-580mm |
Spindle center to pillar distance | 400mm |
Machine weight | 2200kg |
Overall dimensions | 2100*1900*2350mm |
